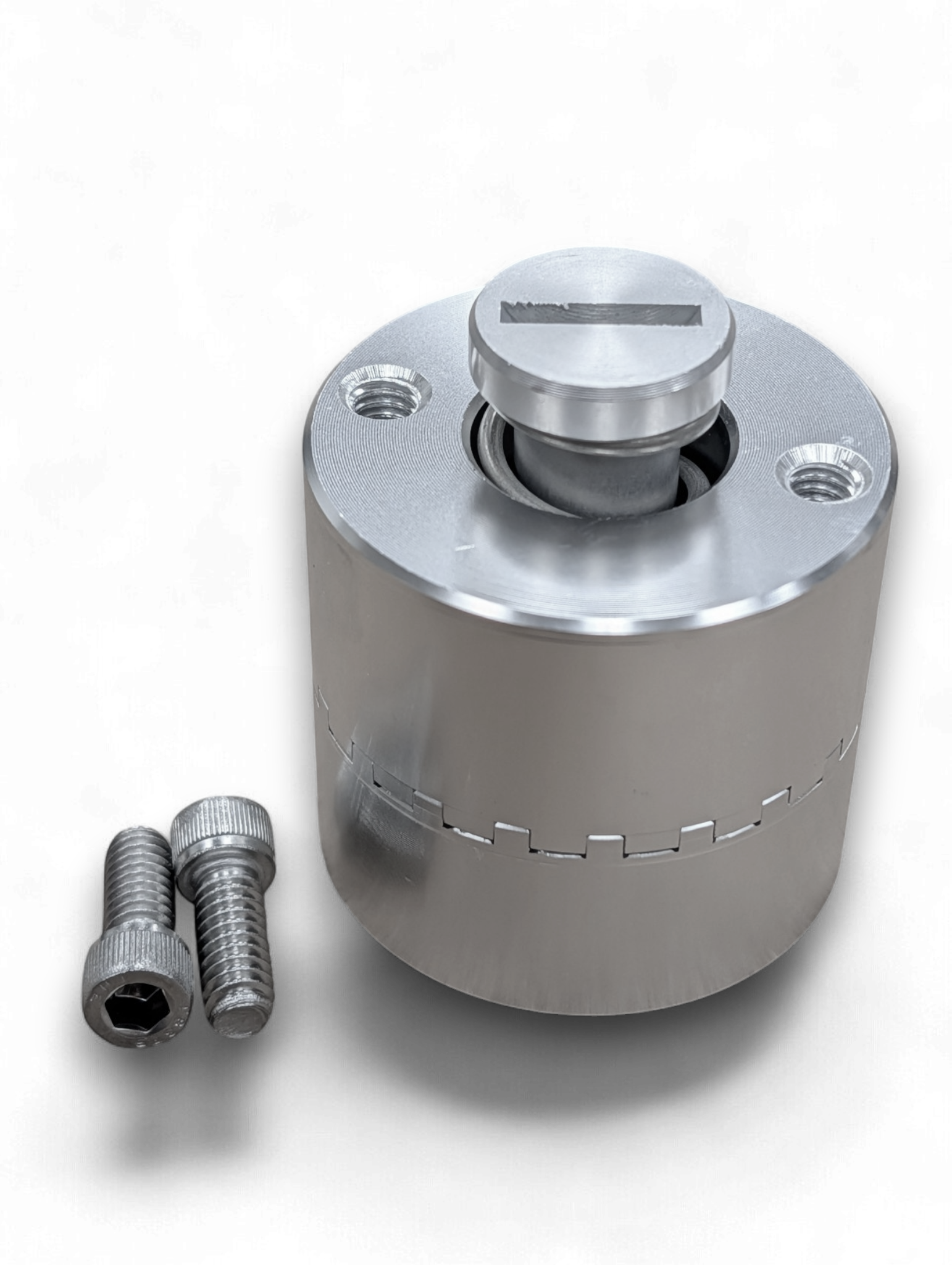

Spring Loaded Indexing Base

Indexing Base Upgrade Kit

If you originally purchased your Cisco equipment without indexing bases, you can easily upgrade your setup for full radial adjustability. This kit includes everything needed to convert your fixed mounts into indexing units.

Compatibility

This kit is designed for Cisco equipment produced since 2017 that features a 1/2-20 threaded hole in the center of the mounting head. It is compatible with:

• Tube or Cradle Rod Holders

• Tree Rod Holders

• Tilt-Lok Electronics Mounts

What’s Included

• Top and Bottom Indexing Plates

• Internal Tension Spring

• Shoulder Bolt

• All necessary mounting hardware

Installation Requirements

To ensure a permanent, vibration-proof fit, we strictly recommend applying Red Loctite to all threads during assembly.

Required Tools:

• 5/32" Hex Wrench

• 3/16" Hex Wrench

• Extra-large Flat Head Screwdriver
